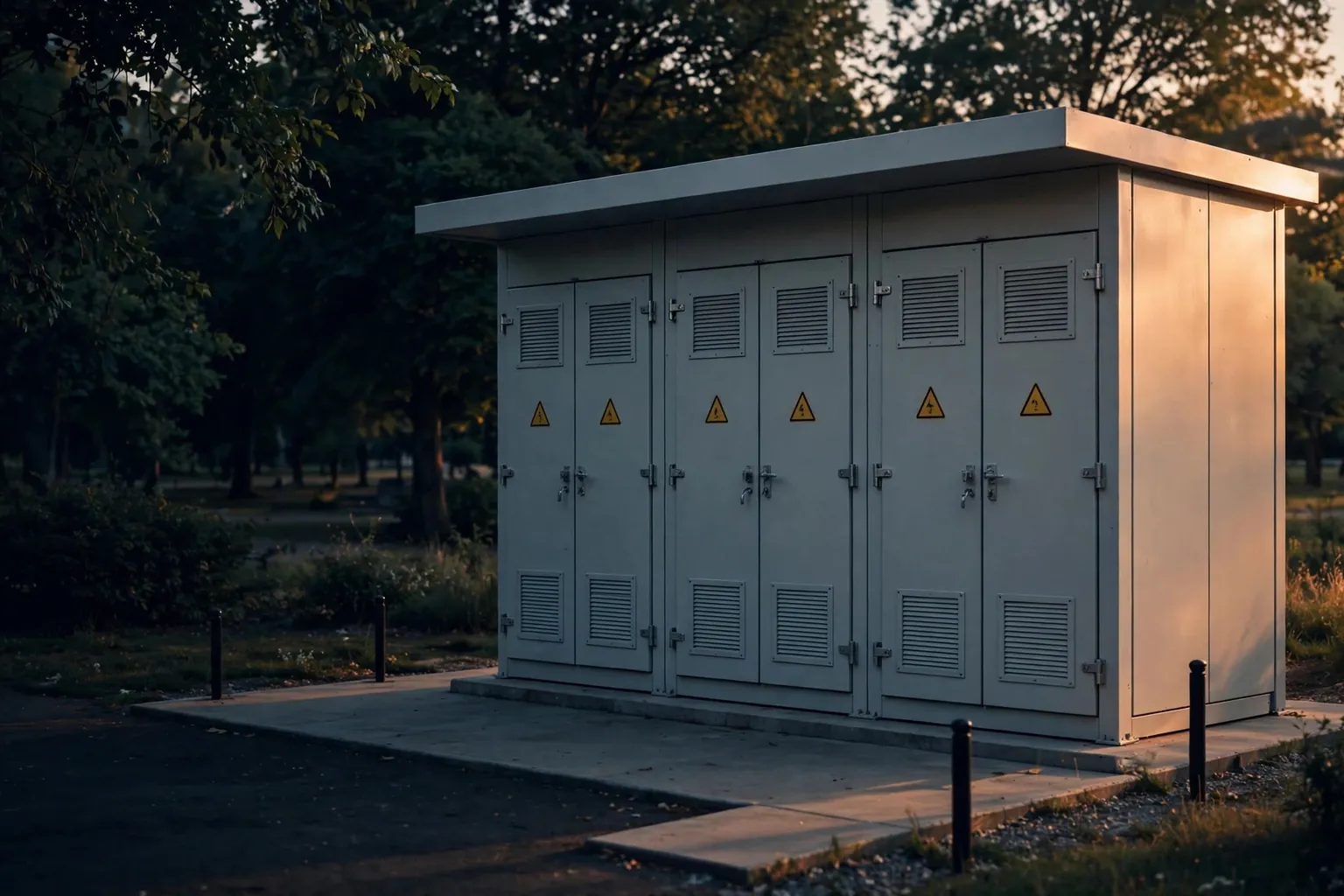

A compact package combining switching, transformation and low-voltage distribution. Define access, cable entry and equipment interfaces before production.
Application & selection
Make the interfaces part of the specification.
Key information for configuration review
- Transformer rating and voltages
- RMU configuration
- LV feeder list
- Ambient temperature, altitude, pollution level
Technical overviewStart with the
Start with the
right specification.
Use this selection reference to prepare your project brief.
Reference values are not a model datasheet. Availability, standards and test coverage require confirmation for the offered equipment.
Download project sheets ↓Selection reference +

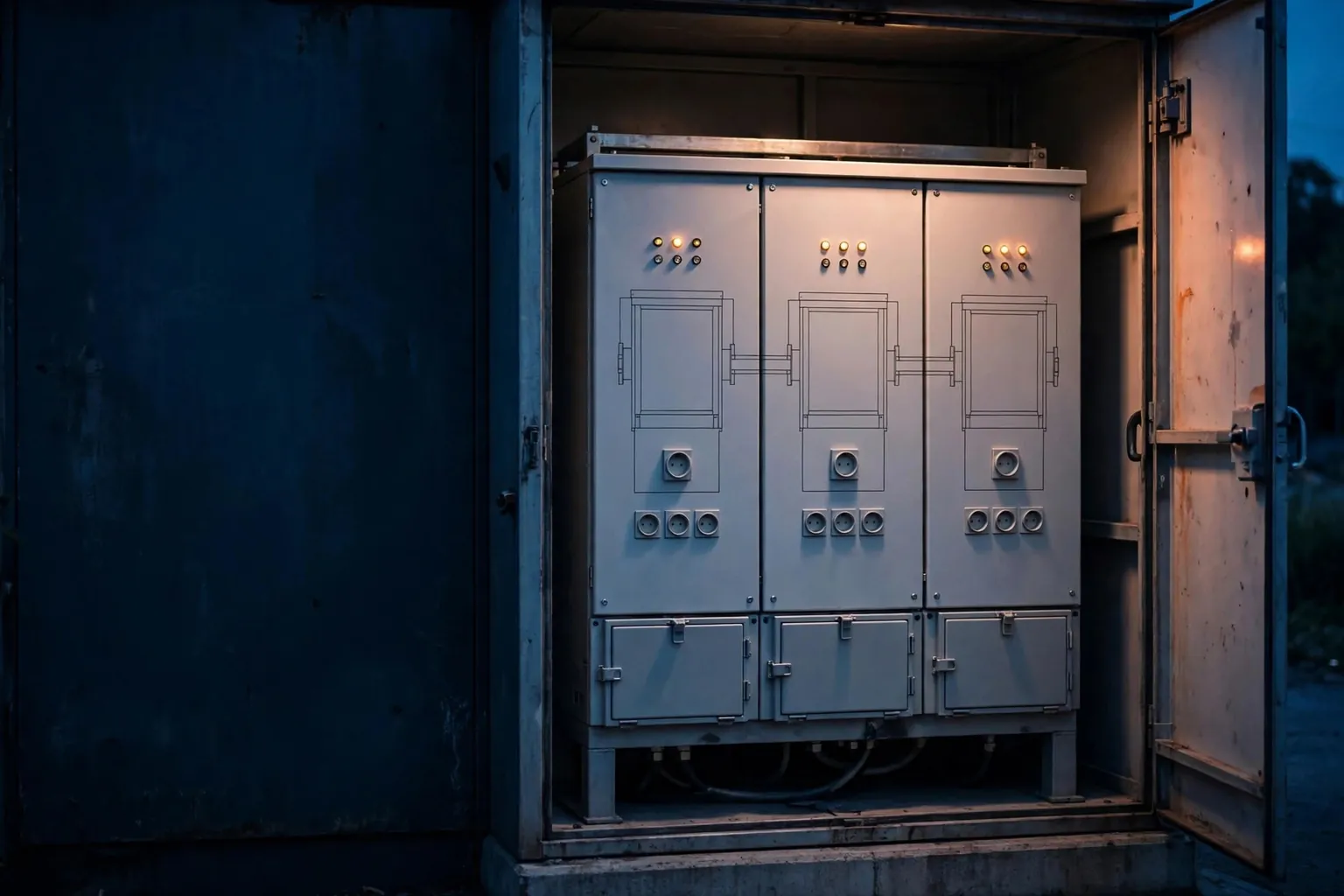

| Transformer | Oil-immersed hermetic, 100 to 2,500 kVA reference range |
|---|---|
| MV switchgear | 3- or 4-way RMU, SF6 or SF6-free, 11/22/33 kV |

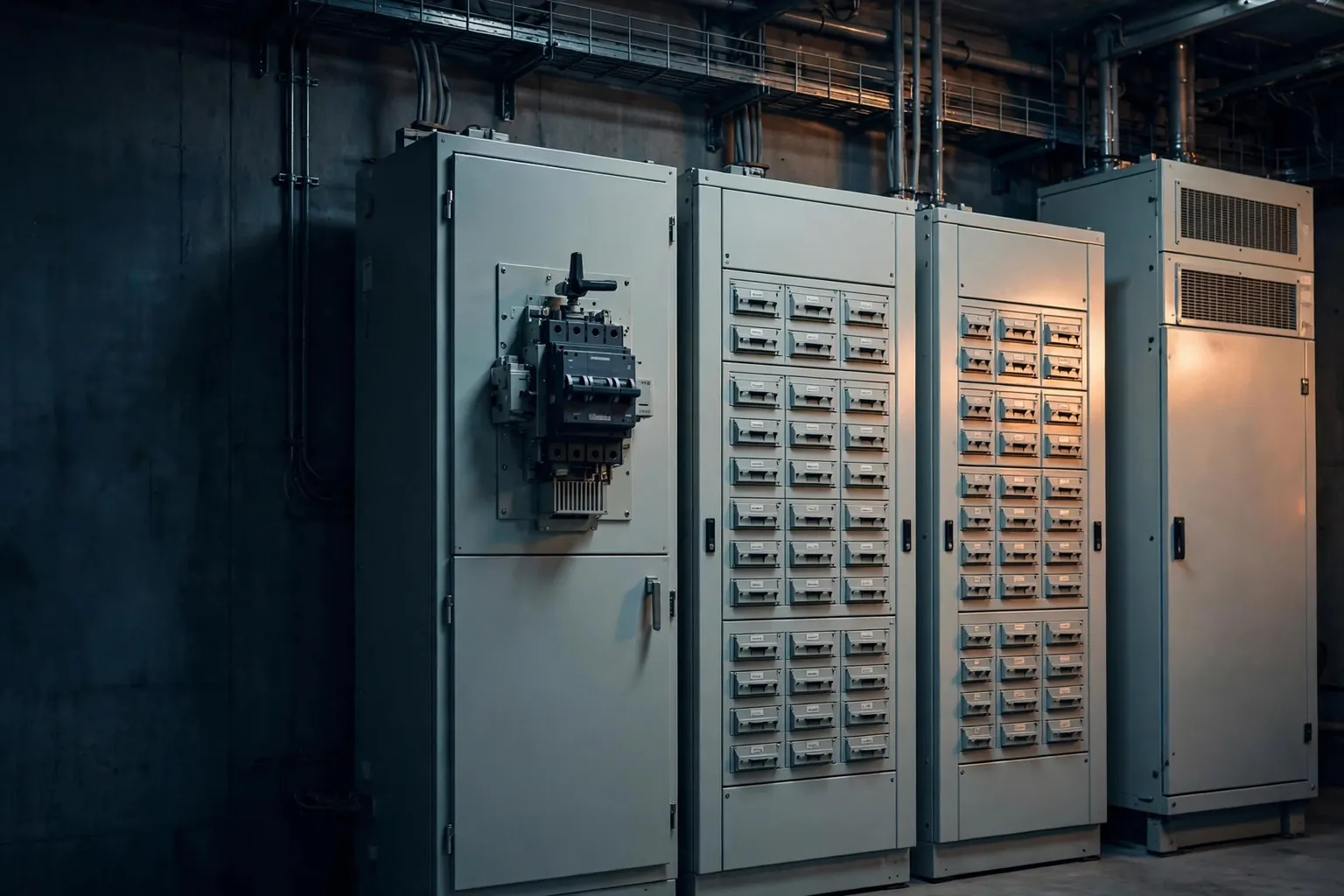

| LV board | ACB or MCCB incomer, MCCB outgoing feeders, metering |
| Enclosure | Galvanised or stainless steel, IP54 typical; enclosure class 10, 20 or 30 K |
| Internal arc | IAC-AB to IEC 62271-202 where specified |
| Standards | IEC 62271-202, IEC 62271-200, IEC 60076, IEC 61439 |
Testing topics to confirm +
Confirm the applicable requirements, available reports and agreed test scope with the proposed manufacturer.
| Routine tests | Transformer routine tests to IEC 60076-1; switchgear routine tests to IEC 62271-200; LV board routine verification to IEC 61439; wiring and functional checks of the assembly |
|---|---|
| Type tests (per design) | Enclosure temperature rise class and internal arc classification to IEC 62271-202 |
Project document package +
- Model-specific datasheet and approved drawings
- Applicable test reports and their coverage
- Inspection, packing and delivery requirements
