Transformers

Dry-type transformers

Cast-resin dry-type configurations for indoor power distribution. Coordinate electrical performance, enclosure, ventilation and access as one design brief.

Technical overview ↓Product guide ↗
Illustration: Cast-resin dry-type transformers
Product illustration · configuration varies by project
Application & selection

Indoor installation starts with the surroundings.

Commercial buildingsData centresIndustrial facilities

Key information for configuration review

  • Rating (kVA) and quantity
  • Primary and secondary voltage
  • Enclosure IP rating and cable entry (top or bottom)
  • Loss limits
Technical overview

Start with the
right specification.

Use this selection reference to prepare your project brief.

Reference values are not a model datasheet. Availability, standards and test coverage require confirmation for the offered equipment.

Download project sheets ↓
Selection reference +
Rated power, reference100 kVA to 2,500 kVA (larger subject to manufacturer confirmation)
Primary voltage11, 22, 33 kV
Secondary voltage400/230 V or 415/240 V
Vector groupDyn11 (others to specification)
CoolingAN; AF with fans for temporary overload
Insulation classF or H
Climatic, environmental, fire classesC2, E2, F1 per IEC 60076-11, when specified
EnclosureIP00 (no enclosure), IP21, IP23 or higher
MonitoringPT100 sensors and temperature controller with alarm and trip contacts
Testing topics to confirm +

Confirm the applicable requirements, available reports and agreed test scope with the proposed manufacturer.

Routine tests (every unit)Winding resistance; ratio and phase displacement; impedance and load loss; no-load loss and current; applied and induced voltage; partial discharge measurement (IEC 60076-11)
Type tests (per design)Temperature rise; lightning impulse; C2, E2 and F1 class tests where the specification requires them
Project document package +
  • Model-specific datasheet and approved drawings
  • Applicable test reports and their coverage
  • Inspection, packing and delivery requirements
Manufacturing & quality →

Related equipment

Illustration: LV switchboards

LV switchboards

Main distribution and motor-control assemblies.

Explore product
Illustration: Prefabricated substations

Prefabricated substations

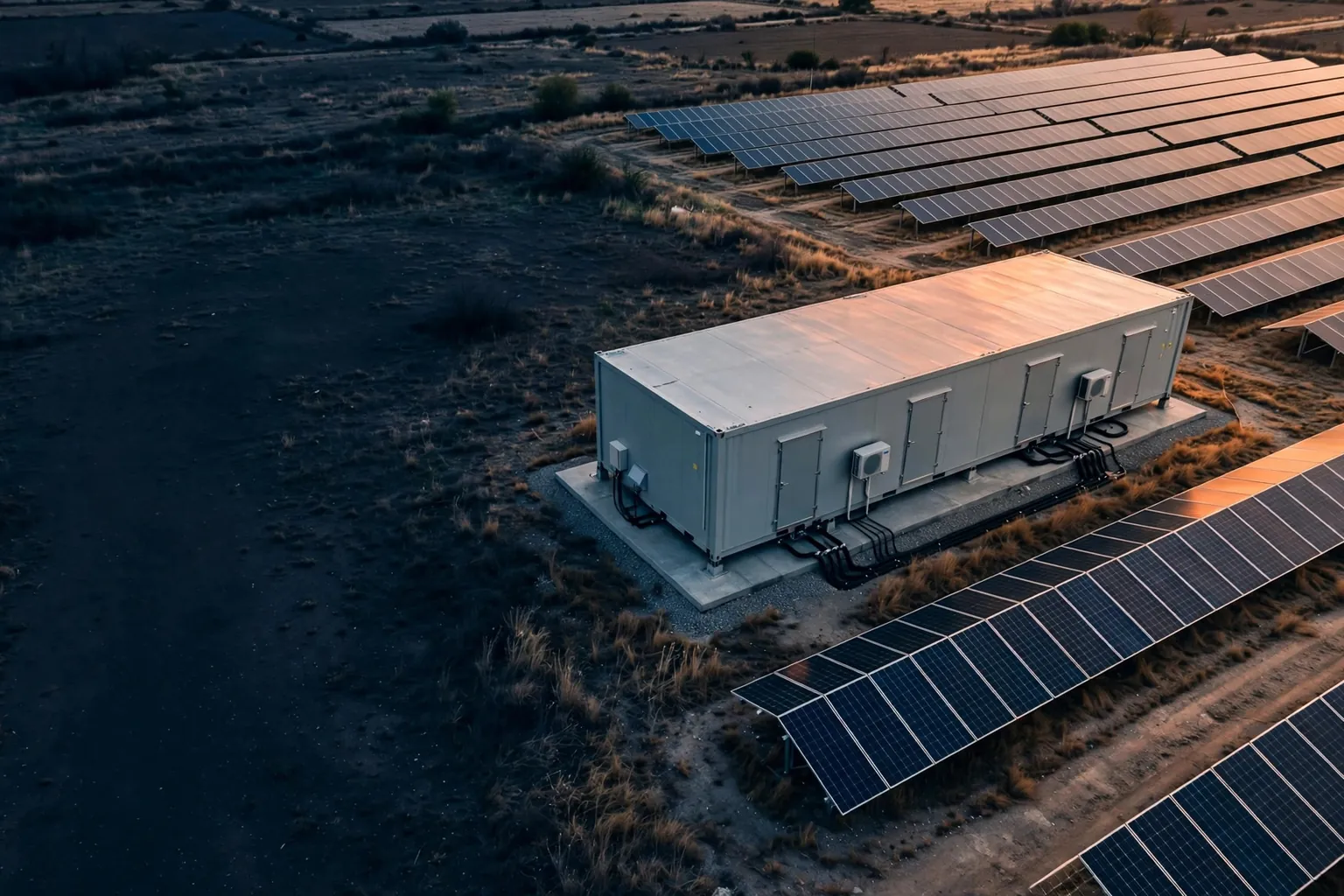

Walk-in enclosures organised around the site layout.
