Compact substations
Package and prefabricated substations combining MV switching, transformer and LV distribution, specified from your single-line diagram and site.

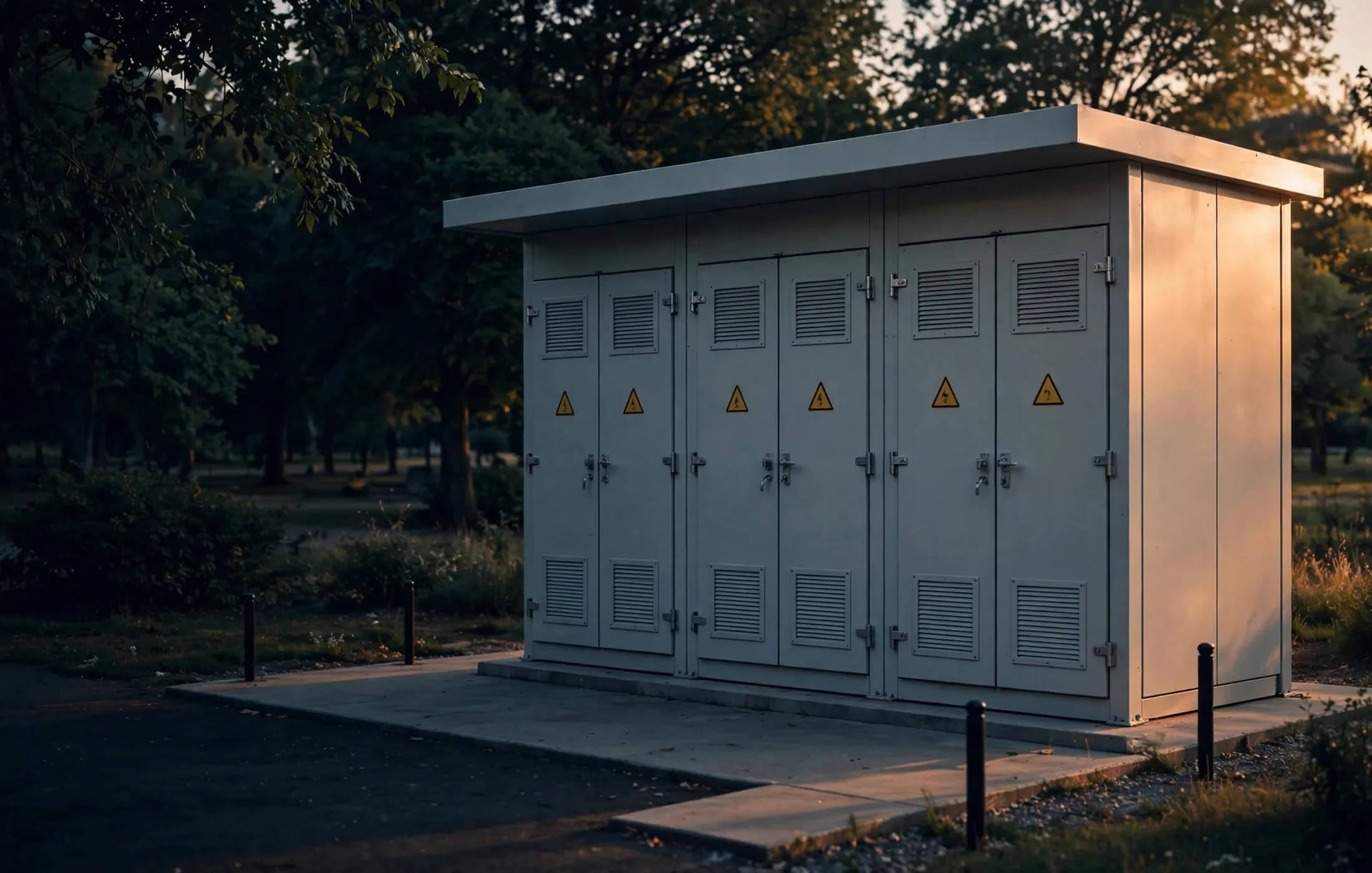

Illustration · application setting
Equipment portfolio
One specification across every interface.
A coordinated substation package.
Package substations
Switching, transformation and LV distribution in one enclosure.
Explore product ↗
Prefabricated substations
Walk-in enclosures organised around the site layout.
Explore product ↗Product illustrations. Offered equipment and supporting documents are confirmed by project.
Technical overviewStart with the
Start with the
right specification.
Use this selection reference to prepare your project brief.
Reference values are not a model datasheet. Availability, standards and test coverage require confirmation for the offered equipment.
Download project sheets ↓Selection reference +
| Configurations | Package (kiosk) with external operation; walk-in prefabricated house |
|---|---|
| Transformer | Oil-immersed or cast-resin, 100 to 2,500 kVA reference range |
| MV side | RMU or MV panels, 11, 22 or 33 kV |
| LV side | Main incomer and outgoing feeders, metering and capacitor banks subject to manufacturer confirmation |
| Enclosure | Steel, aluminium or concrete; IP and enclosure class to IEC 62271-202 |
| Standards | IEC 62271-202, IEC 62271-200, IEC 60076, IEC 61439 |
Project document package +
- Model-specific datasheet and approved drawings
- Applicable test reports and their coverage
- Inspection, packing and delivery requirements
Project resourcesBring your next project
Bring your next project
into focus.
Explore the equipment guide and prepare your requirements with our fillable project sheets.
