Power distribution
Distribution transformers
Oil-immersed, dry-type and pole-mounted configurations. Choose the installation approach, then define the electrical performance your project needs.

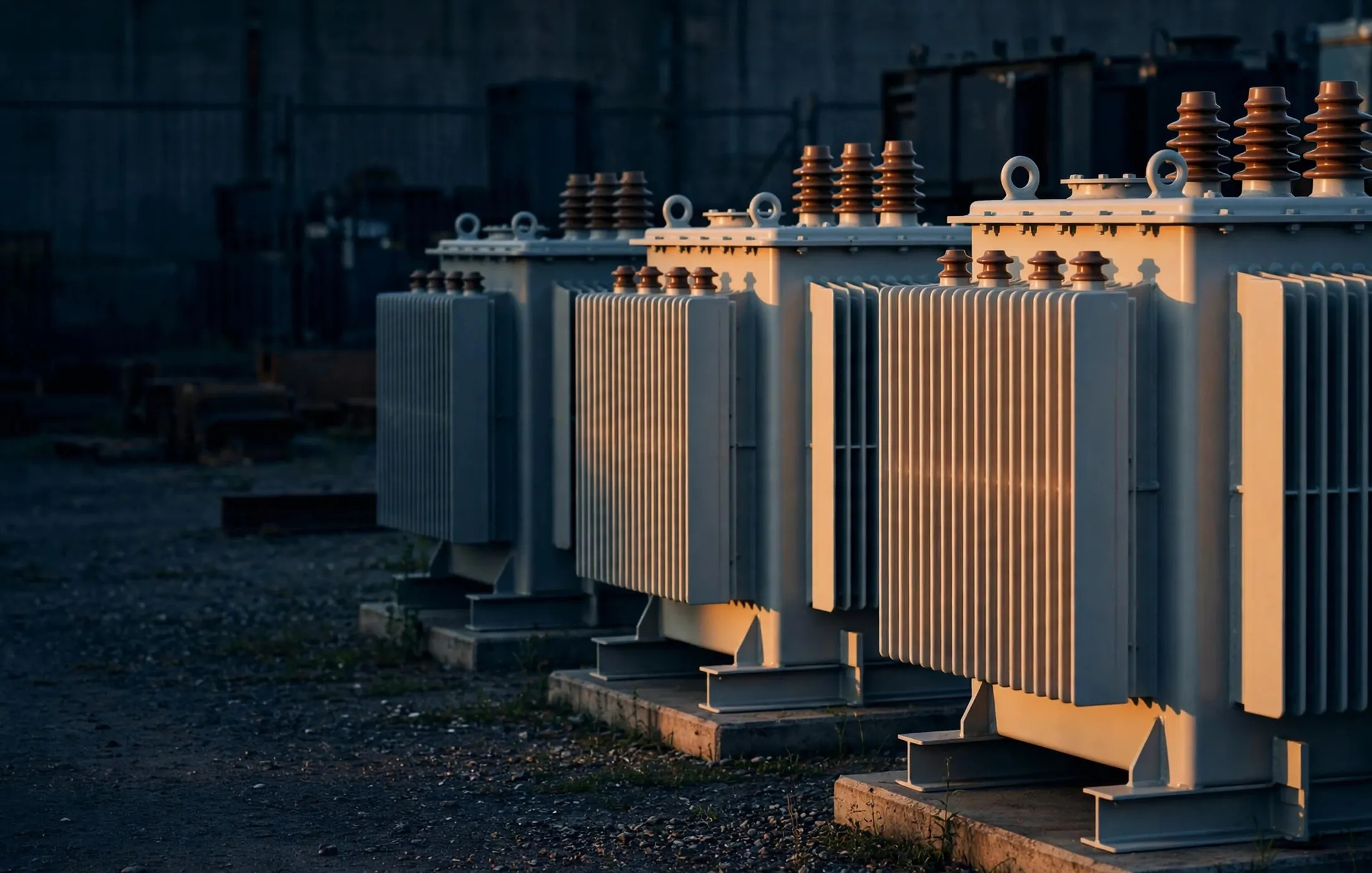

Illustration · application setting
Equipment portfolio
Transformers for the way your network is built.
Power distribution, precisely specified.

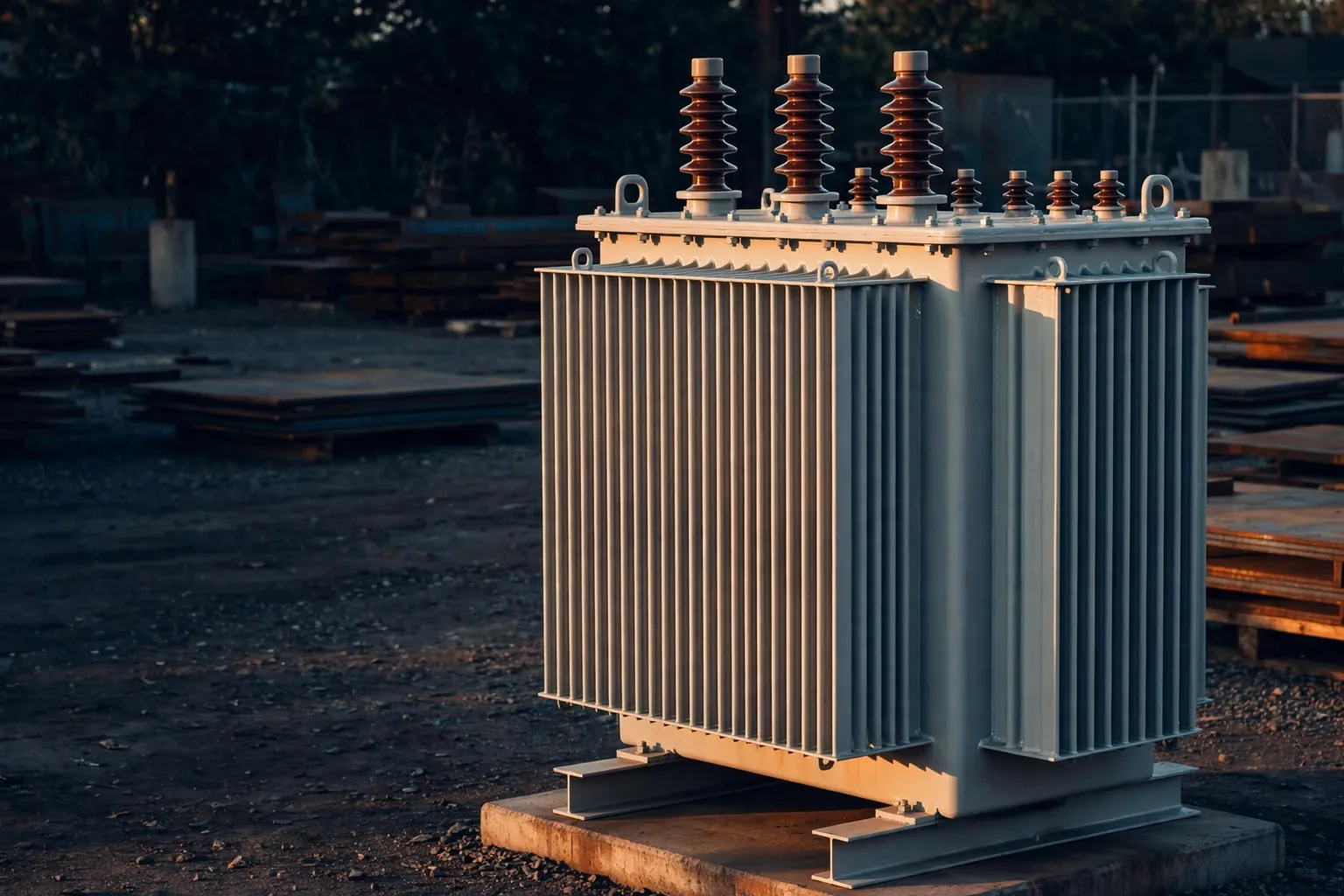

Oil-immersed transformers
Outdoor and utility distribution. Hermetic and conservator configurations.
Explore product ↗

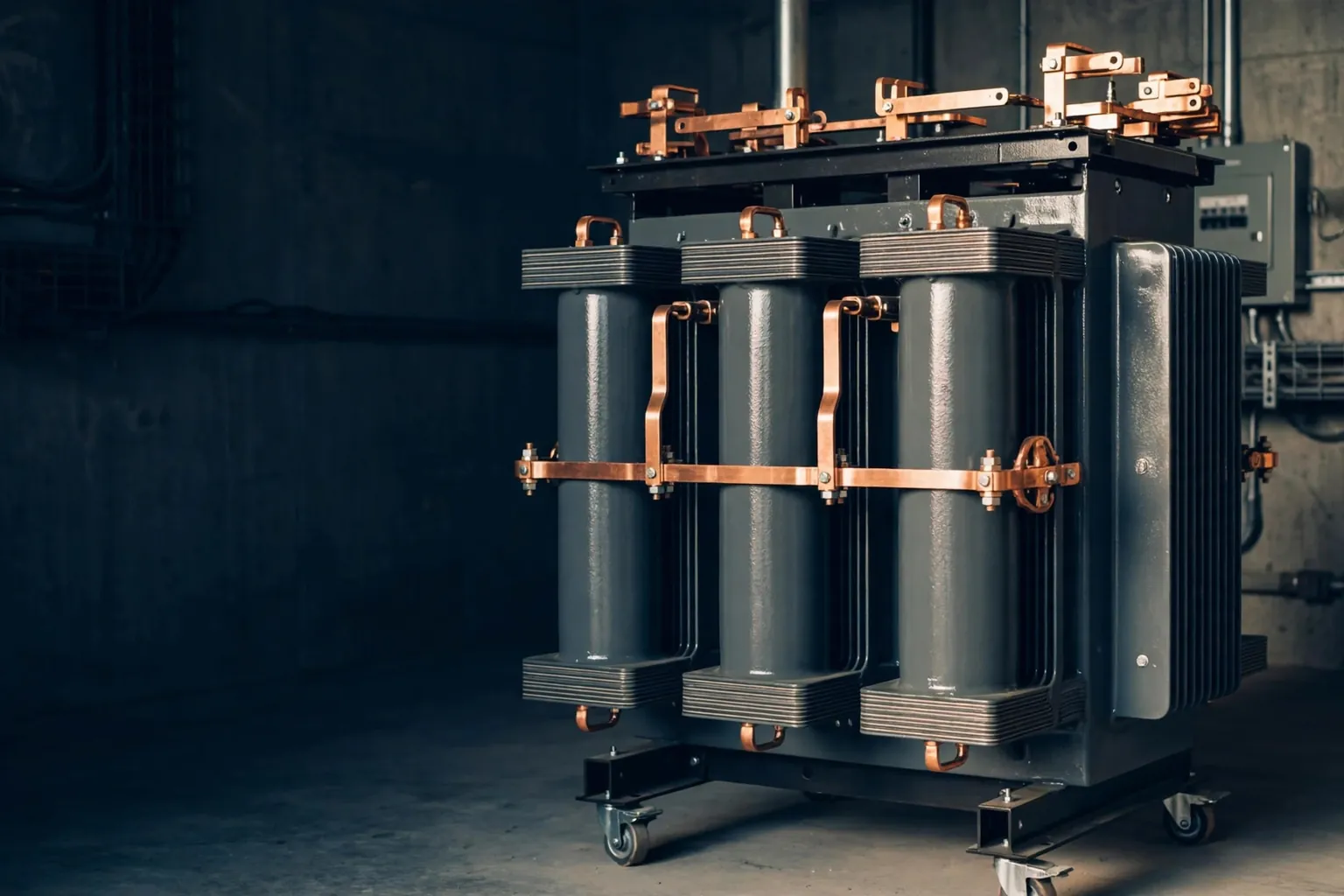

Dry-type transformers
Cast-resin designs for indoor electrical distribution.
Explore product ↗

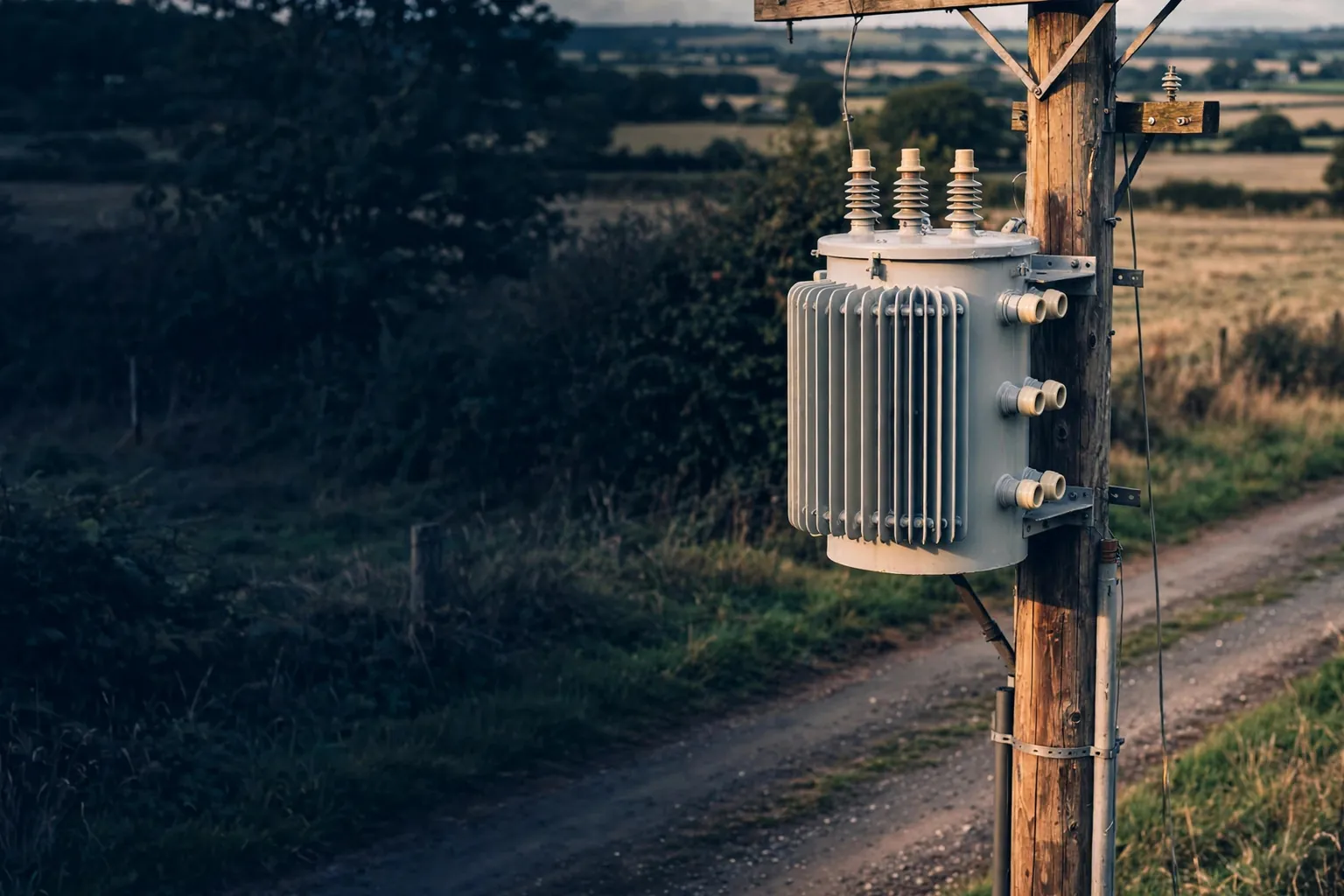

Pole-mounted transformers
Compact configurations for overhead networks.
Explore product ↗Product illustrations. Offered equipment and supporting documents are confirmed by project.
Technical overviewStart with the
Start with the
right specification.
Use this selection reference to prepare your project brief.
Reference values are not a model datasheet. Availability, standards and test coverage require confirmation for the offered equipment.
Download project sheets ↓Selection reference +
| Types | Oil-immersed (hermetic or conservator), cast-resin dry type, pole-mounted |
|---|---|
| Rated power, reference | 25 kVA to 2,500 kVA distribution range; larger ratings subject to manufacturer confirmation |
| Primary voltage | 11, 22, 33 kV (other system voltages subject to manufacturer confirmation) |
| Secondary voltage | 400/230 V or 415/240 V; other LV subject to manufacturer confirmation |
| Vector group | Dyn11 reference configuration; Yyn0, Dyn5 and others to specification |
| Standards | IEC 60076 series; IEC 60076-11 for dry type; utility specifications |
Project document package +
- Model-specific datasheet and approved drawings
- Applicable test reports and their coverage
- Inspection, packing and delivery requirements
Project resourcesBring your next project
Bring your next project
into focus.
Explore the equipment guide and prepare your requirements with our fillable project sheets.
